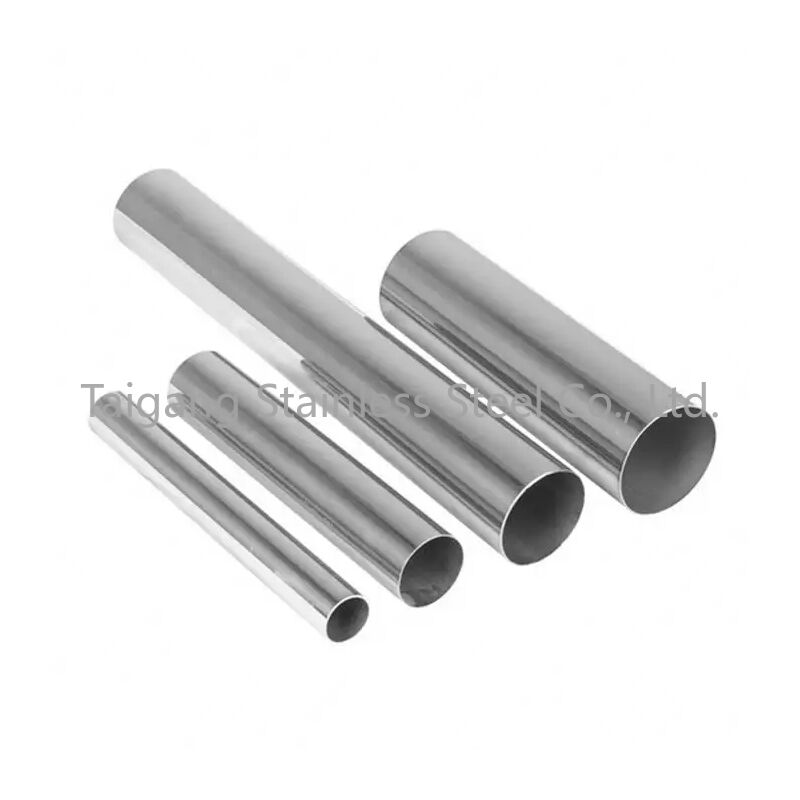

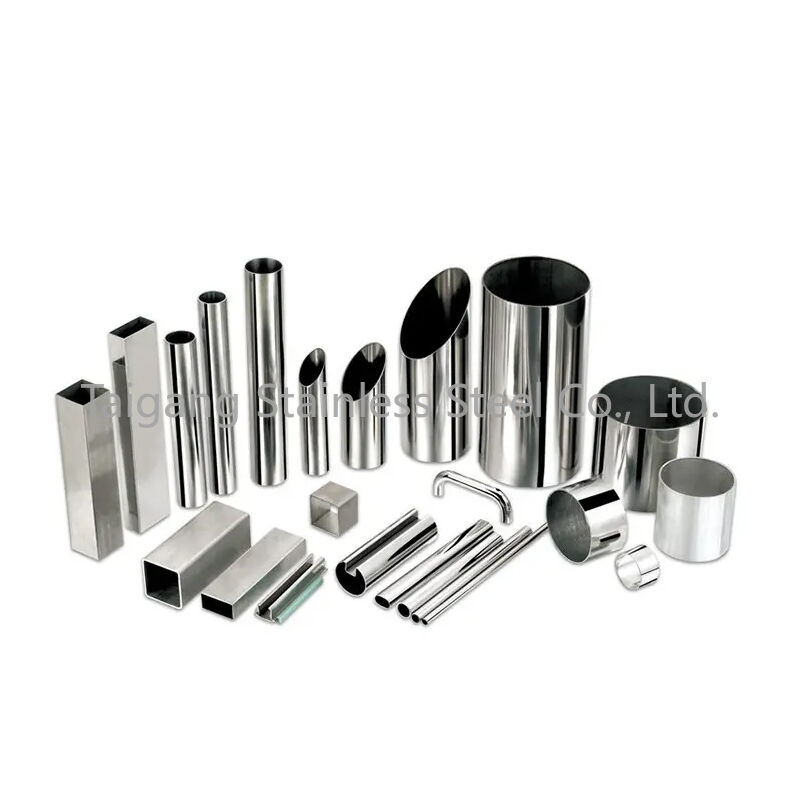

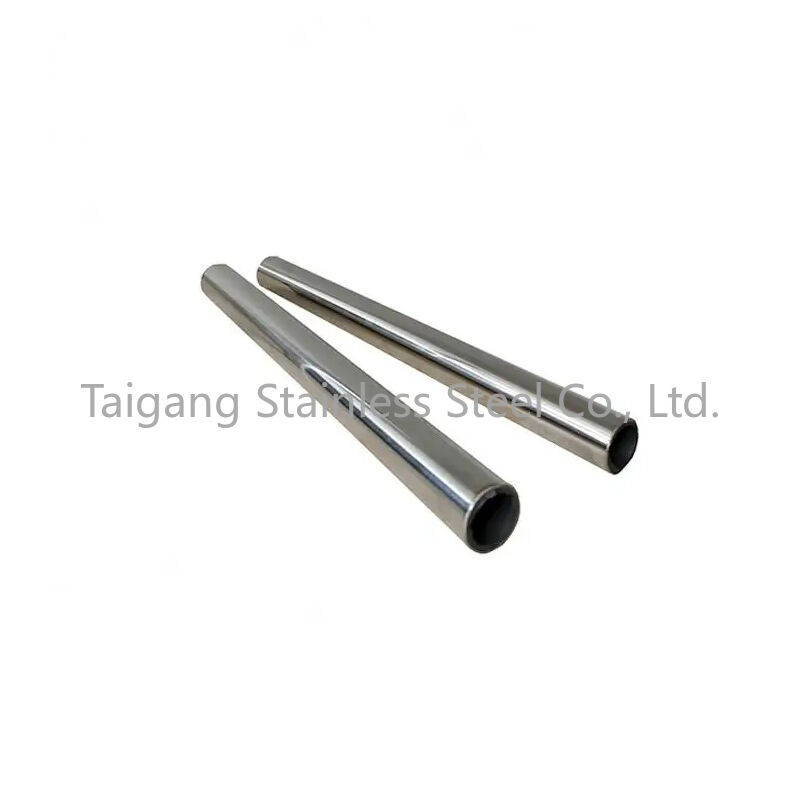

Stainless Steel Round Tube

Stainless steel pipe is a hollow long round steel, mainly widely used in petroleum, chemical, medical, food, light industry, mechanical instrumentation and other industrial pipelines and mechanical structural components. In addition, when the bending and torsional strength are the same, the weight is lighter, so it is also widely used in the manufacture of mechanical parts and engineering structures. It is also commonly used as furniture and kitchen utensils.

Email：sdtg@taigangcnsteel.com

Phone：+86 17306356765

WhatsApp：+86 17306356765

Inquiry Now →

PRODUCT DESCRIPTION

Name	stainless steel pipe
Standard	ASTM, GB, JIS, DIN, EN, AISI
Material Grade	TP304 TP304L TP316 TP316L TP347 TP347H TP321 TP321H TP310 TP310S
	TP410 TP410S TP403
	S31803/S32205 S32750 S32760
Outer Diameter	Seamless Pipe: 4mm-812.80mm
Outer Diameter	Welded Pipe: single slit(Φ8mm-Φ630mm); girth(Φ630mm-Φ3000mm),
Thickness	Seamless Pipe: 0.5mm - 60mm
Thickness	Welded Pipe: single slit(0.5mm-25mm);girth(3mm-45mm)
Length	5.8-6.1 m or as customers' request
Tolerance	Acording to the Standard.
Surface	180G, 320G, 400G Satin / Hairline
Surface	400G, 500G, 600G or 800G Mirror finish
Test	UT, ET, HT, RT,ect, and others according to the standard,or as the requests of the customers
Certificate	ISO9001-2008,ASME, PED
Delivery Time	7-30 Days, Depends on quantity

standard	standard	standard
6-12×1.5-2.5	73×4-4.5-5-6-7-8-9-10-12-15	219×30-40
14×1.5-2.5-3	76×4-4.5-5-6-7-8-9-10-12-14	245×8-10-14-17-20-22
16×1.5-2.5-4	83×4.5-5-10	245×25-28-30-34-40
18×2.3-4-5	89×4.5-8-10	273×7-9-12-15-18-20-25
20×2.5-3-5	95×4.5-6-8	273×30-35-38-40
24×2.5-3-4-5-6	102×4.5-5-6-10-12-14-16-20	299×8-12-16-20-24-28
25×2.5-3-4-5-6	108×4.5-5-14-18-20-22	299×30-32-36-38-40
28×3-3.5-4-5-6	114×4.5-5-6-7-8-10-12-14-18-20	325×8-12-14-18-38
32×3.5-4-5-6-8	121×4.5-5-6-7-8-10-12-14-16-20	325×28-32-34-38
34×4-5-6-8	127×4.5-5-6-7-8-10-12-14-16-20	351×10-16-20-25-40
36×3.5-5-6-8	133×4.5-6-8-12-14-16-18-20-25-30	355×6-18-20-25-30-40
38×4-5-6-7-8-9-10	140×5-6-7-8-9	377×8-12-15-20-24-28
39×3.5-5-8-10	146×4.5-6-8	377×30-37-40
42×3.5-4-5-6-7-8-9-10	152×4.5-6-	402×10-20-25-30-35
45×3.5-4-5-6-7-8-9	159×4.5-6-10-12-14	406×10
48×3.5-4-5-6-7-8-9-10	159×16-18	426×10
51×3.5-4-5-6-7-8-9-10	168×8-25-30-35	450×10-20-25-34-40
56×3.5-4-5-6-7-8-9-10	180×8-12-16-25-30	480×25-30-40
57×3.5-5-6-7-8-9-10-12	180×32-34-38-40	500×10-34-40-45
60×3.5-4.5-5-6-7-8-9-12-14	194×6-8-25-30-40	510×10-25-34-40-45
63×3.5-4.5-5-6-7-8-9-10-12-14	203×6-7-10-15-20-25-30	530×20-30-40
68×4-4.5-5-6-7-8-9-10-12-14-16	203×32-36-40	560-720*6-10-24-45
70×4-4.5-5-6-7-8-9-10-12-15-16	219×6-8-12-16-18-20-25

Stainless steel standard steel grade comparison table and density table

China	Japan	USA	South Korea	European Union	Australia	Taiwan, China	Densityt/m3
GB/T20878	JIS	ASTM	KS	BSEN	AS	CNS
12Cr13	SUS403	403	STS403	—	403	403	7.75
20Cr13	SUS420J1	420	STS420J1	1.4021	420	420J1	7.75
30Cr13	SUS420J2	—	STS420J2	1.4028	420J2	420J2	7.75
10Cr17	SUS430	430	STS430	1.4016	430	430	7.70
68Cr17	SUS440A	440A	STS440A	—	440A	440A	7.70
06Cr19Ni10	SUS304	304	STS304	1.4301	304	304	7.93
022Cr19Ni10	SUS304L	304L	STS304L	1.4306	304L	304L	7.93
06Cr17Ni12Mo2	SUS316	316	STS316	1.4401	316	316	7.98
022Cr17Ni12Mo2	SUS316L	316L	STS316L	1.4404	316L	316L	7.98
06Cr18Ni11Ti	SUS321	321	STS321	1.4541	321	321	7.93
06Cr18Ni11Nb	SUS347	347	STS347	1.455	347	347	7.98
