G90 Galvanized Coil

G90 refers to the coating type and coating weight on the steel coil. "G" means that the coating is galvanized. Meanwhile, the number "90" represents the weight of zinc on the steel. G90 galvanized steel is hot-dip galvanized cold-rolled steel to improve durability.

Email：sdtg@taigangcnsteel.com

Phone：+86 17306356765

WhatsApp：+86 17306356765

Inquiry Now →

PRODUCT DESCRIPTION

G90 Galvanized Coil Description

The coating designation G90 represents the type of coating and the weight of the applied coating. The letter "G" indicates that the coating is galvanized, meaning zinc-based. Meanwhile, the number "90" represents the thickness of zinc on the surface of the steel coil. Galvanized steel coil is covered with a zinc coating to provide corrosion resistance. The G90 protective coating prevents moisture from reaching the steel structure, thereby improving the corrosion resistance of the steel. This can extend the life expectancy of the steel. G90 is the large coat weight and therefore provides strong protection.

Scope of Application

Galvanizing products are widely used in industry, agriculture, animal husbandry and fishery, energy, transportation, chemical industry, light industry, home appliances, construction, communications, national defense and other fields.

Product Parameters

Product Name	G90 Galvanized Coil
Thickness	0.12mm-3.5mm
Width	600mm-1500mm
Length	508mm/610mm, Support Customization
Standard	AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.
Zinc Layer	Hot Galvanizing: 60-275g/m²
Zinc Layer	Pre-galvanized: 80-275g/m²

Chemical Composition

Standard	Grade	C	Si	Mn	P	S	Ti
Forcold Forming Chinese Standard	DX51D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX52D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX53D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX54D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX56D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX57D+Z	0.12	0.50	0.60	0.100	0.045	0.30
Forcold Forming Japanese Standard	SGCC	0.15	0.50	0.80	0.050	0.030	0.025
	SGCD1	0.12	0.50	0.60	0.040	0.030	0.025
	SGCD2	0.10	0.50	0.45	0.030	0.030	0.025
	SGCD3	0.08	0.50	0.45	0.030	0.030	0.025
	SGCD4	0.06	0.50	0.45	0.030	0.030	0.025
For Structure Japanese Standard	SGC340	0.25	0.50	1.70	0.200	0.035	0.025
	SGC400	0.25	0.50	1.70	0.200	0.035	0.015
	SGC440	0.25	0.50	2.00	0.200	0.035	0.015
	SGC490	0.30	0.50	2.00	0.200	0.035	0.025
	SGC510	0.30	0.50	2.50	0.200	0.035	0.025
For Structure AISI Standard	S220GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S250GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S280GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S320GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S350GD+Z	0.20	0.60	0.70	0.100	0.045	0.015
	S550GD+Z	0.20	0.60	0.70	0.100	0.045	0.015

Mechanical Properties

Grade	Yield Strength MPa≥	Tensile Strength MPa≥	Elongation A%≥
DX51D Z/ZM/AZ/AM	240-380	270-500	22
DX52D Z/ZM/AZ/AM	140-300	270-420	26
DX53D Z/ZM/AZ/AM	140-260	270-380	30
DX54D Z/ZM/AZ/AM	120-220	260-350	36
S220GD Z/ZM/AM	220	300	20
S250GD Z/ZM/AZ/AM	250	330	19
S280GD Z/ZM/AM	280	360	18
S300GD A/AM	300	380	18
S320GD Z/ZM/AM	320	390	17
S350GD Z/ZM/AZ/AM	350	420	16
S450GD A/AM	450	480	15
S550GD Z/ZM/AZ/AM	550	550	-

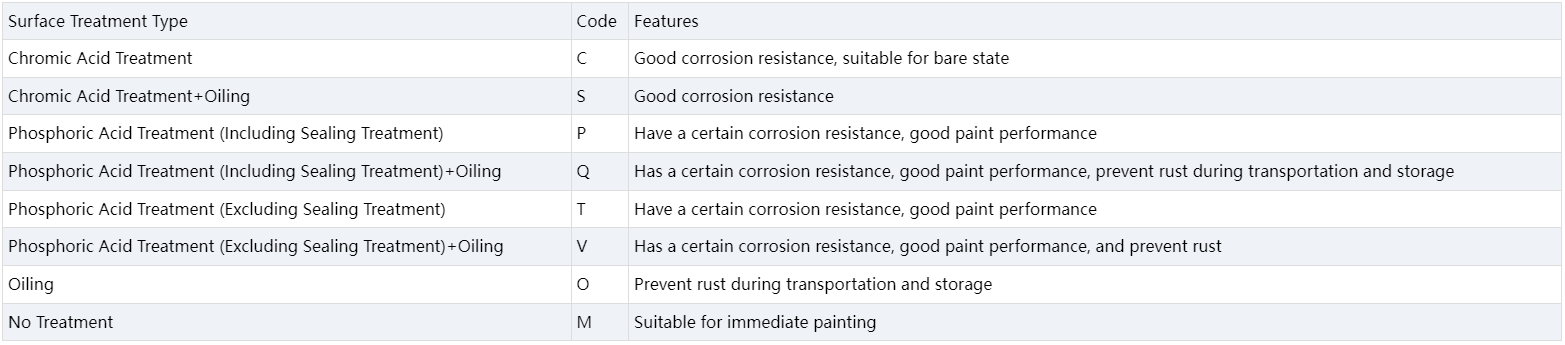

Galvanized Surface Selection

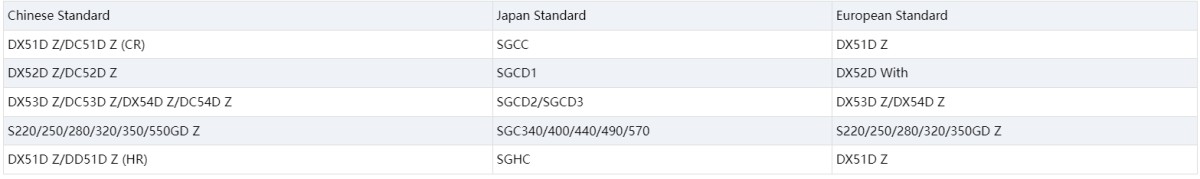

Material Comparison
