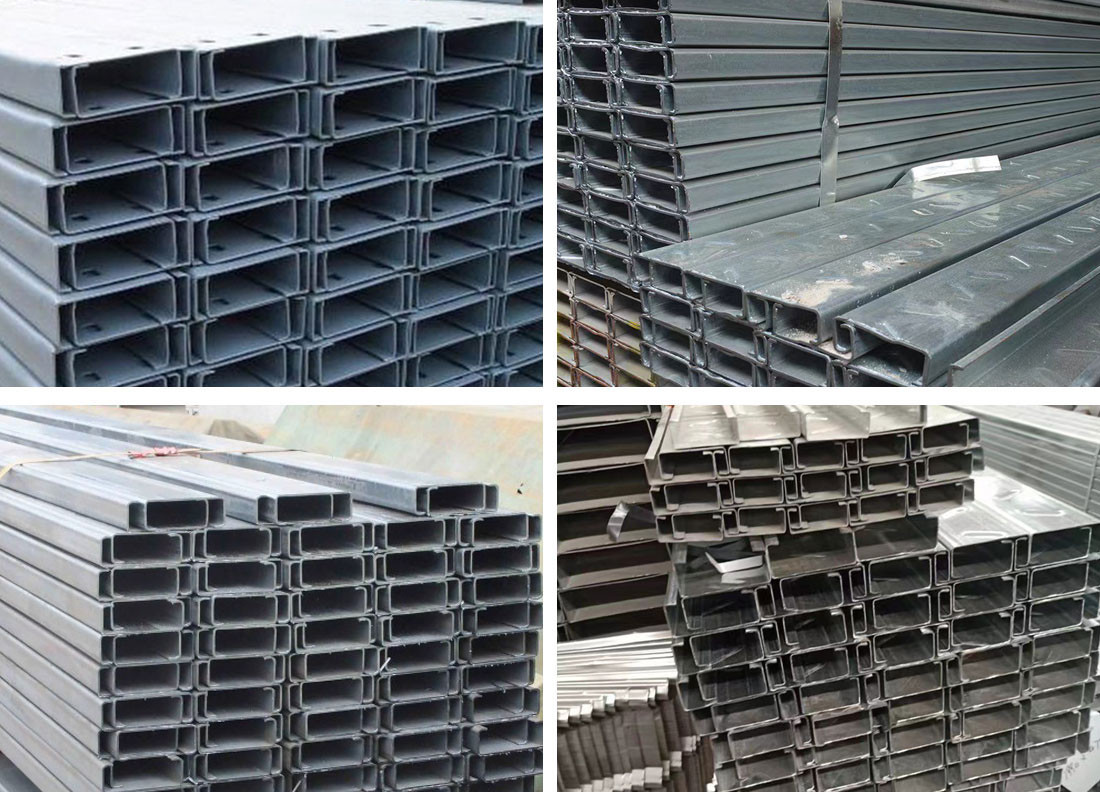

C-shaped steel is flat and square, and can be directly cold-rolled or cut with a wide steel chain. C-shaped steel is automatically processed by a C-shaped steel forming machine. The forming process of CC section steel can be automatically executed according to the given C section steel specification. C-shaped steel is divided by thickness, thin C-shaped steel is 4mm (ultra-thin is 0.2mm), thick C-shaped steel is 4-60mm, and extra-thick C-shaped steel is 60-115mm. C-shaped steel is divided into hot rolling and cold rolling according to cold rolling.

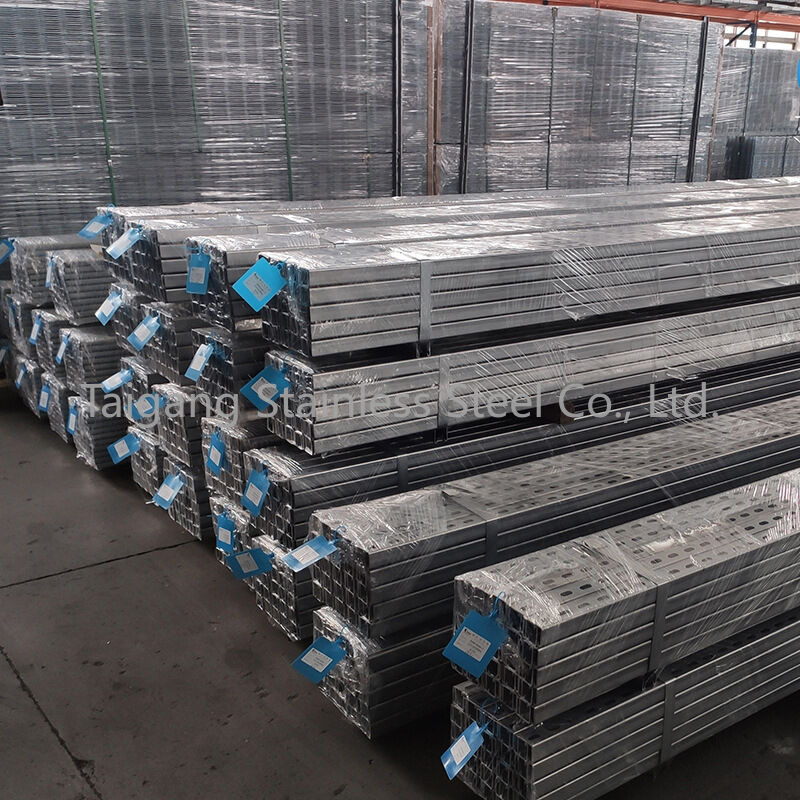

Product Name | Stainless steel C-shaped steel |
Material | Carbon Stee1 Q235 , stainless steel ss304,sS316 |
Channel Size | 41*21mm,41*25mm,41*41mm,41*52mm,41*62mm,41*72mm ,41*82mm |
Length | Standard Length is 3m or 6m , other lengths can be customized |
Thickness | 1.5mm.1.8mm,2.0mm ,2.3mm ,25mm ,2.75mm 3mm or OEM |
Surface Treatment | Pre-galvanized ,Electro-galvanized( yellow or white).Hot Dipped Galvanized ,Powder Coating (BlackGreen,white Gray ,Blue) |
Style | Plain or Slotted |
Slots | 76*10.5mm with 100mm on center, 28*14mm with 50mm on center ,18*9mm or 30*13mm with 50mm on center, |
Packing | 5Opcs or 100pcs are packed in bundle and fasten with steel strips |
Stainless steel standard steel grade comparison table and density table
China | Japan | USA | South Korea | European Union | Australia | Taiwan, China | Densityt/m3 |
GB/T20878 | JIS | ASTM | KS | BSEN | AS | CNS |
|
12Cr13 | SUS403 | 403 | STS403 | — | 403 | 403 | 7.75 |
20Cr13 | SUS420J1 | 420 | STS420J1 | 1.4021 | 420 | 420J1 | 7.75 |
30Cr13 | SUS420J2 | — | STS420J2 | 1.4028 | 420J2 | 420J2 | 7.75 |
10Cr17 | SUS430 | 430 | STS430 | 1.4016 | 430 | 430 | 7.70 |
68Cr17 | SUS440A | 440A | STS440A | — | 440A | 440A | 7.70 |
06Cr19Ni10 | SUS304 | 304 | STS304 | 1.4301 | 304 | 304 | 7.93 |
022Cr19Ni10 | SUS304L | 304L | STS304L | 1.4306 | 304L | 304L | 7.93 |
06Cr17Ni12Mo2 | SUS316 | 316 | STS316 | 1.4401 | 316 | 316 | 7.98 |
022Cr17Ni12Mo2 | SUS316L | 316L | STS316L | 1.4404 | 316L | 316L | 7.98 |
06Cr18Ni11Ti | SUS321 | 321 | STS321 | 1.4541 | 321 | 321 | 7.93 |
06Cr18Ni11Nb | SUS347 | 347 | STS347 | 1.455 | 347 | 347 | 7.98 |
