316L Stainless Steel Coil
316L stainless steel features a lower proportion of carbon in its composition. The amount of carbon cannot be higher 0.03%. This lowers the risk of carbon precipitation, making it a better option for welding to achieve maximum corrosion resistance.
Inquiry Now →

PRODUCT DESCRIPTION


316L Stainless Steel Coil Description

316L stainless steel coil is a variant of 316 stainless steel coil with a lower carbon content and it is used mostly for welding purposes. The lower carbon content minimizes the precipitation of carbides in the heat-affected zone close to the weld, and the precipitation of carbides may cause intergranular corrosion of stainless steel in certain environments. Basically, using 316L eliminates the need to anneal weld joints prior to using the completed metal form, saving time and effort.  316L stainless steel coil is one of the most widely used stainless steel like 304, and its corrosion resistance is better than 304. High temperature resistance is also better, up to 1000 degrees. 316L stainless steel is a kind of universal stainless steel material, with stronger rust resistance  than 200 series stainless steel material.

Product Parameters

Product Name316L Stainless Steel Coil
TypeSteel Coil
Thickness2.5mm-10.0mm
Length2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc.
Width610mm-2000mm
StandardASTM, AISI, JIS, GB, DIN, EN, etc.
SurfaceBA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Scope of Application

Widely used in high temperature and electrical industry, medical equipment construction, chemical, food industry, agriculture and ship parts, food and beverage packaging,

Kitchen supplies, trains, airplanes, conveyor belts, vehicles, bolts, nuts, springs and screens, etc.

CertificateISO, SGS, BV, etc.
Production TechnologyHot Rolling, Cold Rolling
Edge ProcessingEdging, Trimming

Chemical Composition

CSiMnCrNiSPMo
≤ 0.03≤1.0≤ 2.016.0~18.010.0~14.0≤ 0.03≤ 0.0452.0~3.0

Mechanical Properties

Tensile Strength Kb (MPa)Yield Strength σ0.2 (MPa)Elongation D5 (%)Hardness
480177≥ 40≤ 187HB;≤ 90HRB;≤ 200HV

Physical Performance

Density(g/cm³)Modulus of Elasticity(Gpa)Coefficient of Thermal Expansion(10-6/°C)Coefficient of Thermal Conductivity(W/m*K)Resistivity(ΜΩ. cm)
7.9919316.016.274

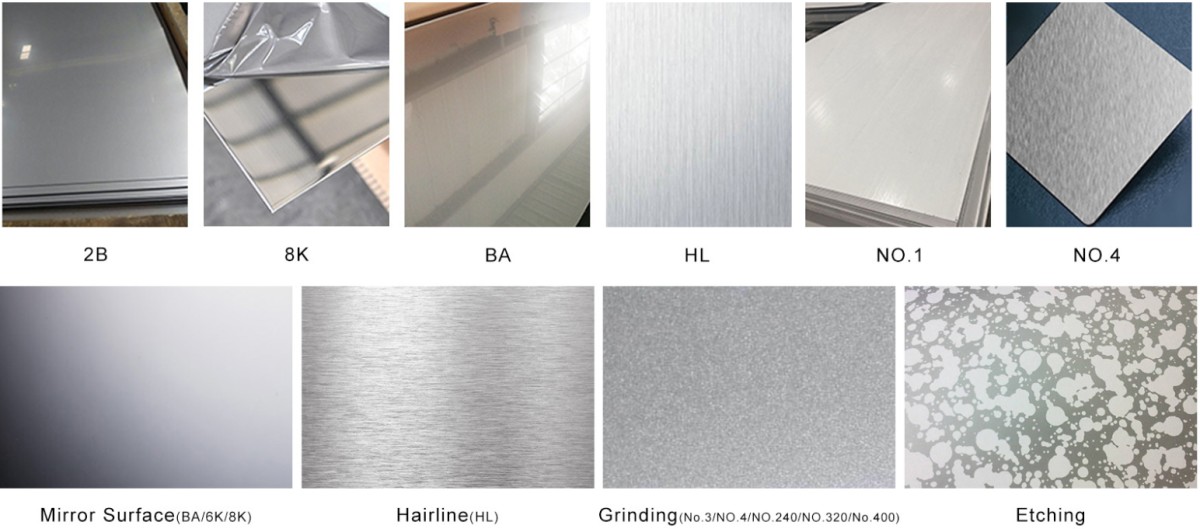

Surface Selection1745548951774222178458722304.png
